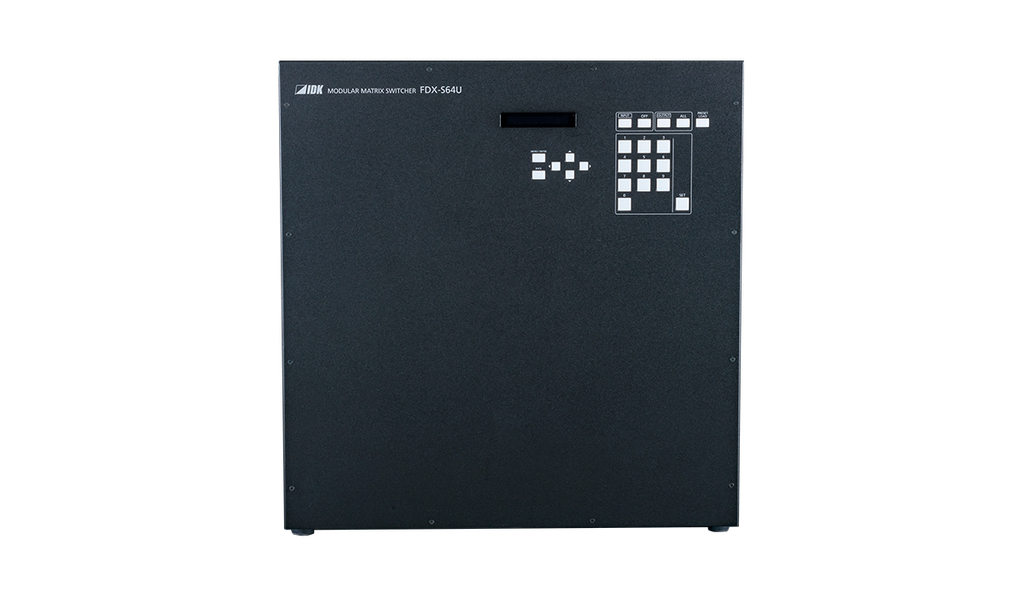

The FDX-S64U is an HDCP 2.2-compliant modular digital matrix switcher
that supports resolutions up to 4K@60 (4:2:0). It provides up to 64
inputs and 64 outputs.
Video and embedded audio can be switched simultaneously.
With audio boards, input digital audio signals can be converted into
output analog audio or Dante network audio signals. Input analog audio
signals and Dante network audio signals can be converted into digital
audio signals and embedded to desired output video channels.
The
FDX-S64U features RS-232C/LAN ports for remote control, redundant power
supply, and system check that outputs an alarm in case an abnormality is
detected in power supply voltage, fans, internal temperature, or board.
The redundant power supply ensures constant availability and minimizes
the chance of a failure even for mission-critical environments.
- Up to 64 inputs (16 input boards)
- Up to 64 outputs (16 output boards)
- Up to 4K@30/4K@60 (4:2:0)
- HDCP 1.4/2.2
- Customizable I/O boards
- Videowall
- Analog and Dante audio input/output boards
