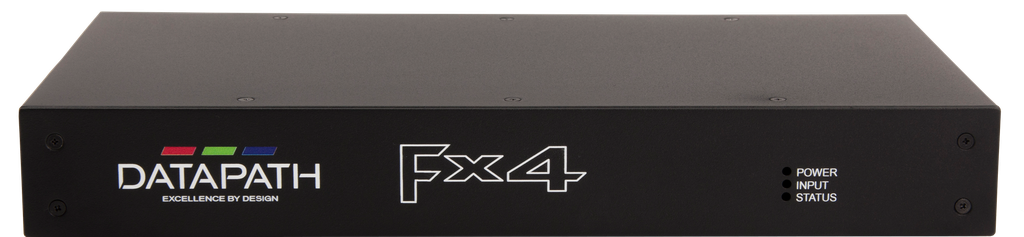

Datapath Fx4/D

4K 60Hz display controller w/HDCP & loop through - DisplayPort outputs

Datapath
0.00 € 0.00 € (Tax excluded)
2,379.00 € (Tax excluded)

Add to cart
Contact Us

Supplier Reference: Fx4/D

The Datapath Fx4 is a multi-faceted stand alone display controller that supports a choice of inputs, high bandwidth loop-through as well as 4 genlocked outputs in DisplayPort.

  • 4K at 60fps input
  • Multiple input choice
  • HDCP Support
  • Rotates, crops and scales


3 Input Choices

The Fx4 features a DisplayPort1.2 main input and two HDMI1.4 inputs. The intuitive UI allows users to determine which input is used.

Network Connectivity

Dual Ethernet ports allow users to add the device to their networks. Ethernet loop though support on the second port means only one device in the chain needs to be physically connected.

Genlocked Input

A dedicated BNC connector allows users to SYNC with third party hardware.

Loop Through

A dedicated DisplayPort1.2 loop through output allows users to link multiple devices. Specifically designed to prevent any loss of resolution, and the original capture signal remains unchanged.


Datasheet FX4




DIMENSIONS

Size

316mm (l) x 172mm (w) x 42mm (h)

Weight

1.86kg

OPERATING TEMPERATURE

0 oC to 35 oC / 32 oF to 96 oF

POWER REQUIREMENTS

IEC switched and fused mains

connector 100-240V,

50/60Hz / 35W

VIDEO INPUT CONNECTIONS

1 x DisplayPort1.2 (2160p60 or equivalent up to 616MP/s)

2 x HDMI1.4 (2160p60 (4:2:0), 2160p30 or equivalent up to 297MP/s)

VIDEO OUTPUT CONNECTIONS
DisplayPort version: 4 x DP1.1 (1080p60,1200p60 or equivalent up to 165MP/s)*

* Outputs within 165MP/s but taller/wider than 2048 require testing

Loop-through (both versions):

DisplayPort1.2 (locked to selectedvideo input resolution)

INPUT SURFACE

8K x 8K maximum



GENLOCK INPUT

Analog HD tri-level sync on dedicated BNC connector.

Embedded sync in any video input (HDMI1, HDMI2, DisplayPort) Progressive syncs only.

CONTROL INTERFACES

Dual 100Base-T Ethernet ports with inbuilt managed switch. USB 2.0 Type B connector

(full speed operation)

FIRMWARE SUPPORT

Updates supported via USB and Ethernet connection

STORAGE

-20 °C to 70 °C / -4 oF to 158 oF

RELATIVE HUMIDITY

5%-90% non-condensing

WARRANTY

3 years
