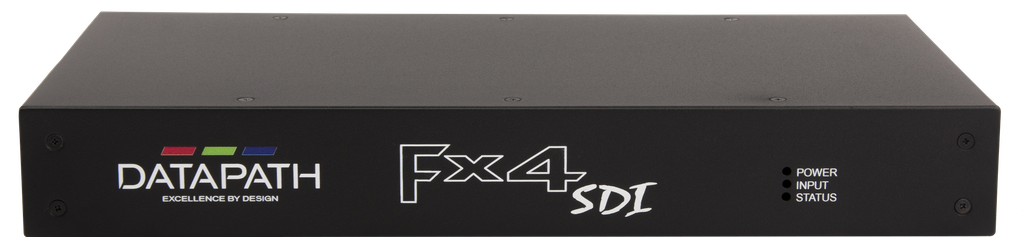

Datapath Fx4-SDI

4K 60Hz 10-bit display controller w/loop through - SDI outputs

Datapath
0.00 € 0.00 € (Tax excluded)
3,629.00 € (Tax excluded)

Add to cart
Contact Us

Supplier Reference: Fx4-SDI

The Datapath Fx4-SDI offers the perfect solution for staging and televised video walls. Delivering four SDI outputs and the ability to loop multiple units together, even the largest, most complex video wall installations are possible.

  • 4K at 60fps input
  • Multiple input choice
  • Four SDI outputs
  • Rotates, crops and scales


3 Input Choices

The Fx4-SDI features a choice of 3G-SDI, DisplayPort 1.2 and HDMI 1.4 inputs. The intuitive UI allows users to determine which input is used.

Network Connectivity

Dual Ethernet ports allow users to add the device to their networks. Ethernet loop though support on the second port means only one device in the chain needs to be physically connected.

Genlocked Input

A dedicated BNC connector allows users to SYNC with third party hardware.

Loop Through

A dedicated DisplayPort 1.2 loop through output allows users to link multiple devices. Specifically designed prevent any loss of resolution, the original capture signal remains unchanged.


Datasheet FX4-SDI




DIMENSIONS

Size

316mm (l) x 172mm (w) x 42mm (h)

Weight

1.86kg

OPERATING TEMPERATURE

0 oC to 35 oC / 32 oF to 96 oF

POWER REQUIREMENTS

IEC switched and fused mains

connector 100-240V,

50/60Hz / 35W

VIDEO INPUT CONNECTIONS

1 x 3G SDI (1080p60 or equivalent up to 148.5MP/s)

1 x DisplayPort1.2 (2160p60 or equivalent up to 616MP/s)

1 x HDMI1.4 (2160p60 (4:2:0), 2160p30 or equivalent up to 297MP/s)

VIDEO OUTPUT CONNECTIONS
4 x 3G SDI (1080p/60 or equivalent up to 165MP/s)

Loop-through:

DisplayPort1.2 (locked to selected video input resolution)

SDI
SMPTE Standards
SMPTE ST 2048 up to 60Hz
SMPTE 274M up to 60Hz
SMPTE 296M up to 60Hz

INPUT SURFACE
4096 x 2160p at 60

8K x 8K maximum



GENLOCK INPUT

Analog black-burst on dedicated BNC connector.
Any video input (SDI, HDMI, DisplayPort)

CONTROL INTERFACES

Dual 100Base-T Ethernet ports with inbuilt managed switch. USB 2.0 Type B connector

(full speed operation)

FIRMWARE SUPPORT

Updates supported via USB and Ethernet connection

STORAGE

-20 °C to 70 °C / -4 oF to 158 oF

RELATIVE HUMIDITY

5%-90% non-condensing

WARRANTY

3 years
