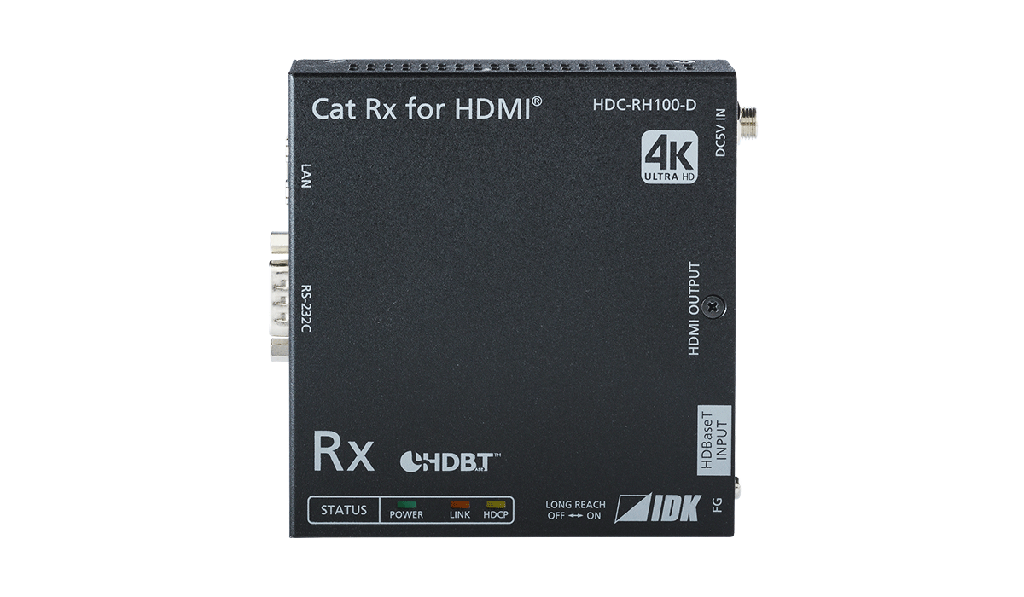

4K@60 HDBaseT Receiver

https://www.3made.be/web/image/product.template/2094/image_1920?unique=f2160a2

No-compressed video transmission
Up to 4K@30/4K@60 (4:2:0)
HDCP 1.4/2.2 (pass-through)
Up to 100 m (CAT5e/CAT6)
Up to 150 m (Long Reach Mode)
LAN and RS-232C transmission
No substantive transmission delay

Contact us for pricing

This combination does not exist.

Contact Us
IDK


Supplier Reference: HDC-RH100-D

The IDK HDC-TH100-D/HDC-RH100-D are extender for a long-haul transmission of HDMI signal over one single category cable.
The image quality will not be deteriorated, since video signal is transmitted at a resolution up to 4K@60 without compression.
You can also control external devices that are connected to the HDC-TH100-D/HDC-RH100-D over RS-232C and LAN by registering external control commands.
Input video signal is converted to HDBaseT signal and sent up to 328 ft. (100 m).



  • No-compressed video transmission
  • Up to 4K@30/4K@60 (4:2:0)
  • HDCP 1.4/2.2 (pass-through)
  • Up to 100 m (CAT5e/CAT6)
  • Up to 150 m (Long Reach Mode)
  • LAN and RS-232C transmission
  • No substantive transmission delay


Data Sheet



​

​



ItemDescription
Input1 input
HDBaseT
RS-232C, LAN
Connector: RJ-45
Output1 output
HDMI /DVI 1.0
TMDS signal link
HDCP 1.4/2.2 (Pass-through)
CEC (Pass-through)
Connector: Female HDMI Type A (19-pin)
FormatVGA to 4K
480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4K
Color depth24 bit, 30 bit, 36 bit Deep Color
Dot clock25 MHz to 600 MHz
TMDS clock25 MHz to 340 MHz
TMDS data rate0.75 Gbps to 10.2 Gbps
Plug & PlayPass-through
Digital audio input/outputMulti-channel LPCM up to 8 channels
Sampling frequency: 32 kHz to 192 kHz, Sample size: 16 bit to 24 bit
Cable for extensionCAT.5E HDC, Cat5e UTP/STP, Cat6 UTP/STP cable
Maximum transmission distances328 ft. (100 m) (For 4K format, CAT.5E HDC, Cat5e STP, or Cat6 STP cable is used)
492 ft. (150 m) (Long reach mode is used)
RS-232C
1 port/male D-sub (9 pin), full duplex, up to 115.2 kbps
LAN1 port/RJ-45 10Base-T/100Base-TX (Auto Negotiation), Auto MDI/MDI-X
Power
DC 5 V 1.4 A
Power consumptionAbout 4 Watts
Dimensions4.2 (W) × 1.1 (H) × 3.9 (D)” (106 (W) × 27.5 (H) × 100 (D) mm)
(Quarter rack wide, thin type) (Excluding connectors and the like)
Weight0.4 lbs. (0.2 kg)
TemperatureOperating: 32°F to 104°F (0°C to +40°C)
Storage: -4°F to +176°F (-20°C to +80°C)
HumidityOperating/Storage: 20% to 90% (Non Condensing)
