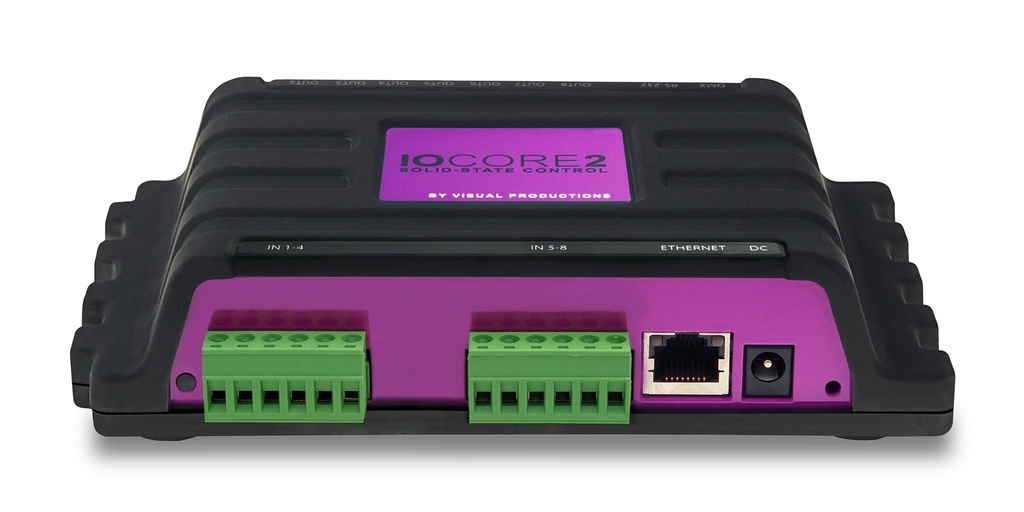

Visual Productions IoCore2

http://www.3made.be/web/image/product.template/1538/image_1920?unique=5ad9969

GPI+GPO interface with RS-232 & DMX

Contact us for pricing

    This combination does not exist.

    Contact Us


    Supplier Reference: IoCore2

    The IoCore2 is a network-based solid-state interface for GPIO signals.
    It features eight GPI ports that can be configured as digital contact-closures or analog 0-10V level inputs.

    The IoCore2 also has eight GPO ports that are fitted with potential free relay switches.
    Furthermore, it has a RS-232 port, a bi-directional DMX-512 port and it supports many Ethernet based protocols.



    Manual IoCore2



    • Ethernet port
    • Programming via web-interface
    • 8 x Analogue or Digital inputs
    • 8 x Relay (250VAC/30VDC max. 2A)
    • DMX512-A (ANSI E1.11) port (opto-isolated, input or output)
    • RS-232 port (in & out)
    • Art-Net (in & out)
    • sACN (in & out)
    • TCP (in)
    • USP & OSC (in & out)
    • 12-24 DC 500mA (PSU included)
    • Power over Ethernet (class I)
    • Kensington lock
    • Desktop, DIN Rail or 19″ rack mount (optional adapter)
    • Operating temperature -20°C to +50°C (-4°F to +122°F)
    • Compliance EN55103-1 EN55103-2
    • Bundled with CueluxPro, vManager and Kiosc software
