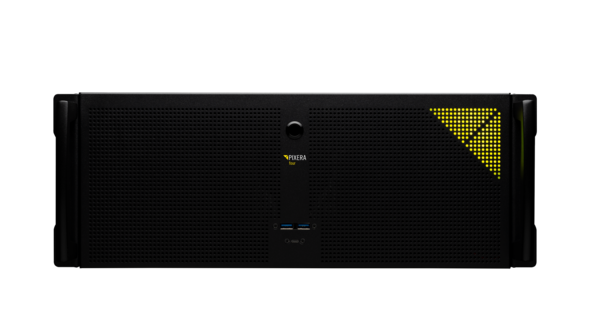

PIXERA four QUAD
* 19""- 4U media server
* Redundant Power supply Hot-Plug
* AMD EPYC™ (24/48-Core, 2,85/4,0GHz, 128MB)
* 128GB RAM (ECC, 8 channels)
* 3,84 TB Data Storage U.2 SSD (Data U.2 SSD RAID0 Max. Read Rate: 10 GB/s)
* Physical Outputs: 4 x DisplayPort 1.4a
* 2x 10 Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* Operating System: Windows® 10 IoT - 21H2 x64
* PIXERA server - QUAD Hardware licence - UAP included
* PIXERA control - GATE licence
* 19"" Rail Kit for Pixera 4 incl. fastening material
Documents
Supplier Reference:
PX4-4
PIXERA four is an incredibly powerful media server hardware system,
perfect for highly demanding real-time graphics applications and XR/AR broadcast setups.
This new media server can be used as a Director server or as a 2 or 4 licensed output server.
Four Reasons
why PIXERA four is a great choice
- Powerful, flexible and reliable 4K and 8K media server
- 12G-SDI I/O support
- 10GB/s data read default rate
- Five PCI 4.0 slots offer great configuration flexibility
Highlights
- Compact with a depth of only 46cm, perfect for installations
- Uncompressed 8K (4:4:4) 60fps content playback
- AMD Performance CPU and 128GB RAM
- Great ROI for XR, rental/staging and installations
- Available with 2 or 4 outputs
- Redundant power supply
- Up to 61TB storage with 20GB/s available
- Dual 25Gbit/s network available
