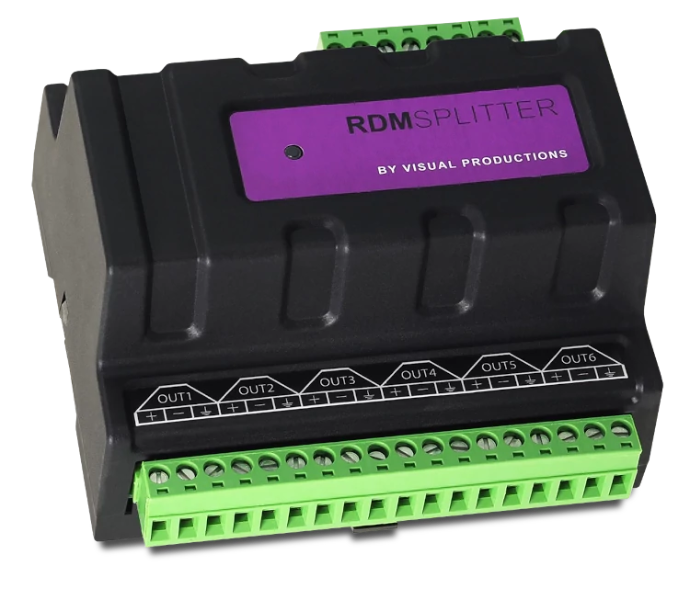

The RdmSplitter is an optically isolated splitter/booster for DMX and RDM networks.
Extend the DMX network
The widespread data protocol for lighting
equipment is DMX-512. It is a very successful protocol with, however, a
few limitations. The maximum number of attached devices is limited to 32
and a DMX cable should not be longer than 300 meters.
RdmSplitter helps tackle those inconvenient limitations. The Splitter
takes a DMX signal and sends it out again on its 6 DMX output ports.
Each output port is capable of driving 32 more devices. The Splitter can
also function as a signal booster as each port supports another 300
meter long connection.
Make cable runs easier
Normally DMX requires fixtures to be connected
in bus-topology having one cable running via each device. The
RdmSplitter allows a star-topology for efficient cable usage.
Receive fixture feedback
The RdmSplitter supports RDM communication.
RDM is the protocol that allows your fixtures to send feedback
information to the lighting controller via the DMX cable.
