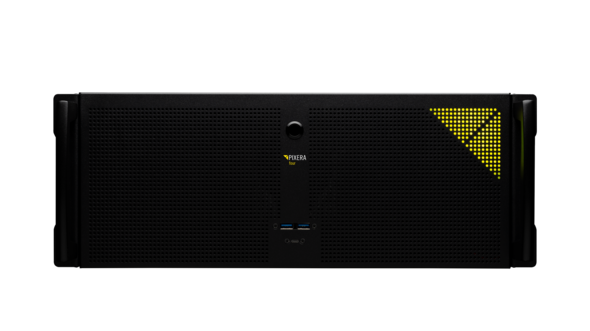

PIXERA four QUAD RS
* 19""- 4U media server
* Redundant Power supply Hot-Plug
* AMD EPYC™ (24/48-Core, 2,85/4,0GHz, 128MB)
* 128GB RAM (ECC, 8 channels)
* 15,36 TB Data Storage U.2 SSD (Data U.2 SSD RAID0 Max. Read Rate: 10 GB/s)
* Physical Outputs: 4 x DisplayPort 1.4a
* 2x 10 Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* GUI Output
* Framelock and Genlock
* 4x 1Gbps Network
* 2x25Gbps Network
* 1x HDMI2.0 Input
* 2x12G-SDI I/O or 4x3G-SDI I/O
* Dante Virtual soundcard
* Operating System: Windows® 10 IoT - 21H2 x64
* PIXERA server - QUAD Hardware license - UAP included
* PIXERA control -CORE license
* 19"" Rail Kit incl. fastening material
Documents
Supplier Reference:
PX4-RS
In order to be able to offer our customers a special pre-configured version of our powerful PIXERA four,
perfect for cross rental scenarios, we created the PIXERA four RS.
The RS stands for rental & staging in this context.
Key Facts
- PIXERA four QUAD
- PIXERA Control CORE License
- 16TB NVMe-SSD Storage
- 1GbE Quad Network Card
- 25GbE Dual Network Card
- 12G-SDI Input/Output or 4x 3G-SDI
- 1x HDMI 2.0 Input
- Framelock and Genlock
- Dante Virtual Sound Card
Virtual Production
XR stages and related broadcast/virtual production
setups have become extremely popular in recent months.
Rapid
technological developments in the realm of real-time graphics,
unprecedented hardware processing power and the exponential global
growth of 3D software engine usage are equally responsible for the
meteoric rise of virtual production applications.
PIXERA four is
perfectly suited to be an integral component of cutting edge workflows
that feature real-time and e.g. Unreal engine content.
