Pixera Four


PIXERA Hardware Configurator


PIXERA server hardware offers you a lot of choices when it comes to the specific configuration of the server models that fit your project requirements. In order to make finding the perfect configuration easy and fun, we created a versatile hardware configurator tool, which you can access on the Pixera website.

​www.PIXERA.one/configurator​

Need help to find the best configuration for your setup ? Don't hesitate to contact us !

Sort By Sort By: Newest Arrivals
[PX4-0-G2] PIXERA four DIRECTOR Gen.2

PIXERA four DIRECTOR Gen.2

* 19""- 4U media server
* Redundant Power supply Hot-Plug
* AMD RYZEN™ Threadripper ™ PRO (24/48-Core, 4,2/5,4GHz)
* 256GB RAM (ECC, 8 channels)
* 960GB U2 NVMe Operating System Storage
* 8TB Data Storage M.2 SSD (Data Capacity (NET) 7.27TB RAID0 Max. Read Rate: 10GB/s)
* GPU: NVIDIA RTX™ BW, 48GB| Physical Outputs: 4x DisplayPort 2.1b
* 2x 10Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out with 2x XLR and Balanced in with XLR or 6,35 Jack)
* Operating System: Windows® 11 IoT - 24H2 x64
* PIXERA director - DIRECTOR Hardware licence - UAP included
* PIXERA control - GATE licence
* 19"" Rail Kit for Pixera 4 incl. fastening material

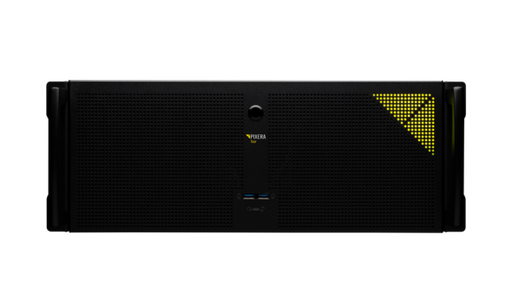

[PX4-2-G2] PIXERA four DUAL Gen.2

PIXERA four DUAL Gen.2

* 19""- 4U media server
* Redundant Power supply Hot-Plug
* AMD RYZEN™ Threadripper ™ PRO (24/48-Core, 4,2/5,4GHz)
* 256GB RAM (ECC, 8 channels)
* 960GB U2 NVMe Operating System Storage
* 8TB Data Storage M.2 SSD (Data Capacity(NET) 7.27TB RAID0 Max. Read Rate: 10GB/s)
* GPU: NVIDIA RTX™ BW, 48GB| Physical Outputs: 4x DisplayPort 2.1b
* 2x 10Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out with 2x XLR and Balanced in with XLR or 6,35 Jack
* Operating System: Windows® 11 IoT - 24H2 x64
* PIXERA server - DUAL Hardware licence - UAP included
* PIXERA control - GATE licence
* 19"" Rail Kit for Pixera 4 incl. fastening material
[PX4-4-G2] PIXERA four QUAD Gen.2

PIXERA four QUAD Gen.2

* 19""- 4U media server
* Redundant Power supply Hot-Plug
* AMD RYZEN™ Threadripper ™ PRO (24/48-Core, 4,2/5,4GHz)
* 256GB RAM (ECC, 8 channels)
* 960GB U2 NVMe Operating System Storage
* 8TB Data Storage M.2 SSD (Data Capacity(NET) 7.27TB RAID0 Max.Read Rate: 10GB/s)
* GPU: NVIDIA RTX™ BW, 48GB| Physical Outputs: 4x DisplayPort 2.1b
* 2x 10Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out with 2xXLR and Balanced in with XLR or 6,35 Jack)
* Operating System: Windows® 11 IoT - 24H2 x64
* PIXERA server - QUAD Hardware licence - UAP included
* PIXERA control - GATE licence
* 19"" Rail Kit for Pixera 4 incl. fastening material
[PX4-RS-G2] PIXERA four QUAD RS Gen.2 PIXERA four QUAD RS Gen.2

PIXERA four QUAD RS Gen.2

* 19""- 4U media server
* Redundant Power supply Hot-Plug
* AMD RYZEN™ Threadripper ™ PRO (24/48-Core, 4,2/5,4GHz)
* 256GB RAM (ECC, 8 channels)
* 16TB Data Storage M.2 SSD (Data capacity(NET) 14,56TB RAID0 Max. Read Rate: 20 GB/s)
* GPU: NVIDIA RTX™ BW, 96GB| Physical Outputs: 4x DisplayPort 2.1b
* 2x 10 Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out with 2xXLR and Balanced in with XLR or 6,35 JAck)
* GUI Output
* Framelock and Genlock
* 4x 1Gbps Network
* 2x 25Gbps Network
* 1x HDMI2.0 Input
* 2x 12G-SDI I/O or 4x 3G-SDI I/O
* Dante Virtual soundcard
* Operating System: Windows® 11 IoT - 24H2 x64
* PIXERA server - QUAD Hardware license - UAP included
* PIXERA control -CORE license
* 19"" Rail Kit incl. fastening material
