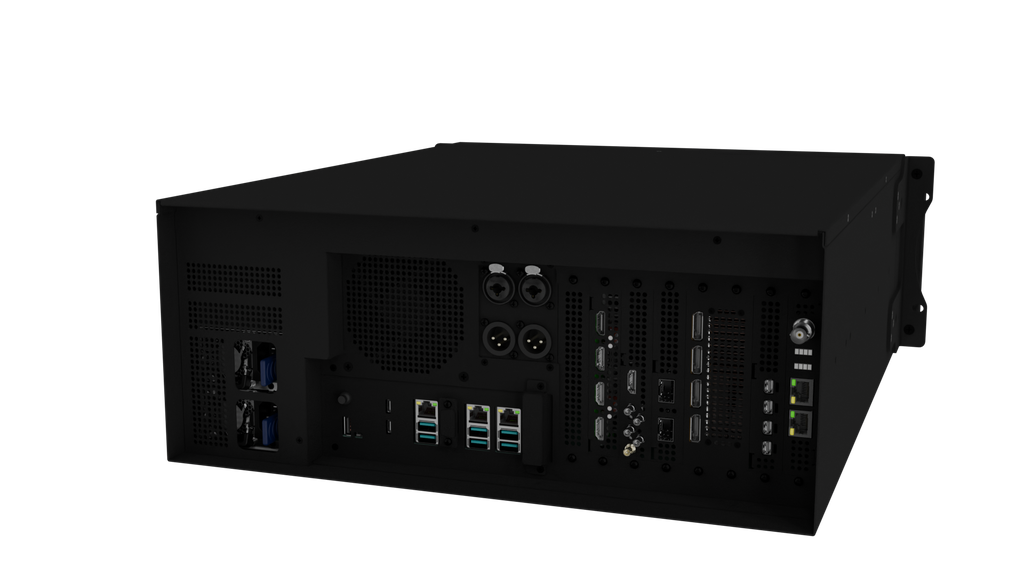

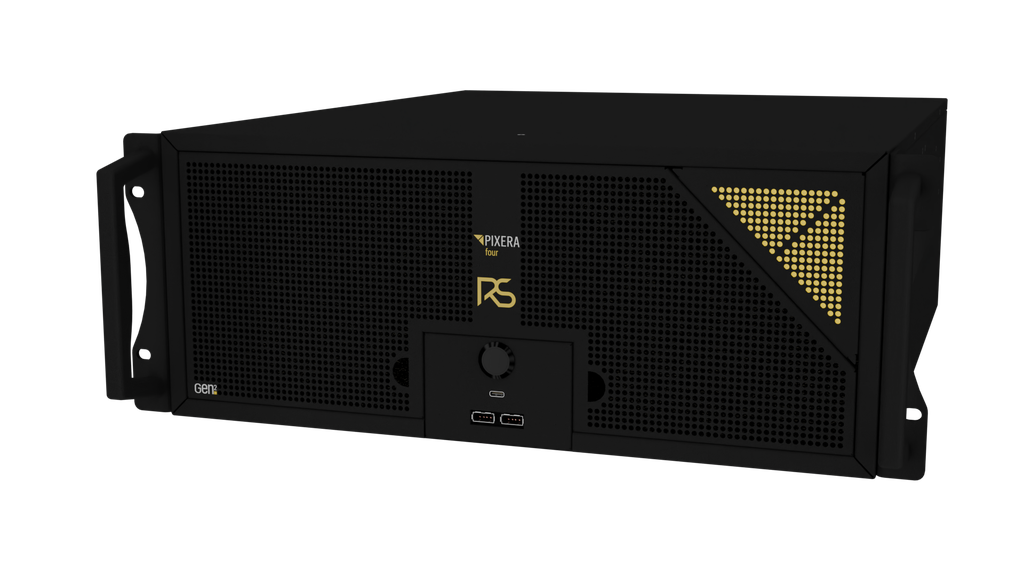

PIXERA four QUAD RS
* 19"- 4U media server
* Redundant Power supply Hot-Plug
* AMD EPYC™ (24/48-Core, 2,85/4,0GHz, 128MB)
* 128GB RAM (ECC, 8 channels)
* 15,36 TB Data Storage U.2 SSD (Data U.2 SSD RAID0 Max. Read Rate: 10 GB/s)
* Physical Outputs: 4 x DisplayPort 1.4a
* 2x 10 Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* GUI Output
* Framelock and Genlock
* 4x 1Gbps Network
* 2x25Gbps Network
* 1x HDMI2.0 Input
* 1x12G-SDI I/O or 4x3G-SDI I/O
* Dante Virtual soundcard
* Operating System: Windows® 10 IoT - 21H2 x64
* PIXERA server - QUAD license V2
* PIXERA control -CORE license V2
* 19" Rail Kit incl. fastening material
PIXERA four QUAD
* 19"- 4U media server
* Redundant Power supply Hot-Plug
* AMD EPYC™ (24/48-Core, 2,85/4,0GHz, 128MB)
* 128GB RAM (ECC, 8 channels)
* 3,84 TB Data Storage U.2 SSD (Data U.2 SSD RAID0 Max. Read Rate: 10 GB/s)
* Physical Outputs: 4 x DisplayPort 1.4a
* 2x 10 Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* PIXERA server - QUAD licence V2
* Operating System: Windows® 10 IoT - 21H2 x64
* PIXERA control - GATE licence V2
* 19" Rail Kit for Pixera 4 incl. fastening material
PIXERA two RS Gen.2
* 19"- 2U media server gen.2
* Redundant Power supply
* Intel® Xeon® (12/24-Core, 2.0/3.9GHz, 30MB),
* 128GB RAM (ECC REG, 8 channels)
* 7,68TB U.2 (max. read 10 GB/s)
* GUI Output
* Framelock and Genlock
* 4x 1 Gbps Network
* 2x 10 Gbps LAN onboard | 1x IPMI LAN
* 1x HDMI2.0 Input
* 1x12G-SDI I/O or 4x3G-SDI I/O
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* Dante Virtual soundcard
* Operating System: Windows® 10 IoT - 21H2 x64
* PIXERA server - QUAD license V2
* PIXERA control - CORE license V2

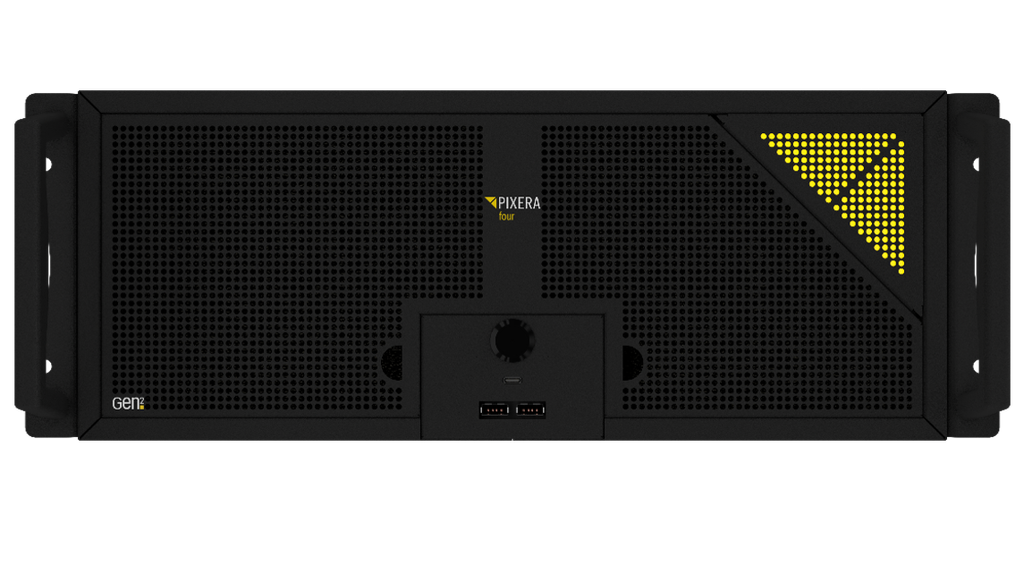

PIXERA four DUAL
* 19"- 4U media server
* Redundant Power supply Hot-Plug
* AMD EPYC™ (24/48-Core, 2,85/4,0GHz, 128MB)
* 128GB RAM (ECC, 8 channels)
* 3,84 TB Data Storage U.2 SSD (Data U.2 SSD RAID0 Max. Read Rate: 10 GB/s)
* Physical Outputs: 4 x DisplayPort 1.4a
* 2x 10 Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* PIXERA server - DUAL licence V2
* Operating System: Windows® 10 IoT - 21H2 x64
* PIXERA control - GATE licence V2
* 19" Rail Kit for Pixera 4 incl. fastening material
PIXERA four DIRECTOR
* 19"- 4U media server
* Redundant Power supply Hot-Plug
* AMD EPYC™ (24/48-Core, 2,85/4,0GHz, 128MB)
* 128GB RAM (ECC, 8 channels)
* 3,84 TB Data Storage U.2 SSD (Data U.2 SSD RAID0 Max. Read Rate: 10 GB/s)
* Physical Outputs: 4 x DisplayPort 1.4a
* 2x 10 Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* PIXERA director - DIRECTOR licence V2
* Operating System: Windows® 10 IoT - 21H2 x64
* PIXERA control - GATE licence V2
* 19"" Rail Kit for Pixera 4 incl. fastening material
4x NVMe SSD 15,36TB (20GB/s)
* Data NVMe SSD Capacity (NET): 61,44TB | Data NVMe Max. Read Rate: 20 GB/sec
* Playback Duration Uncompressed Content (Single Stream): 736 min (4k60 TIFF)

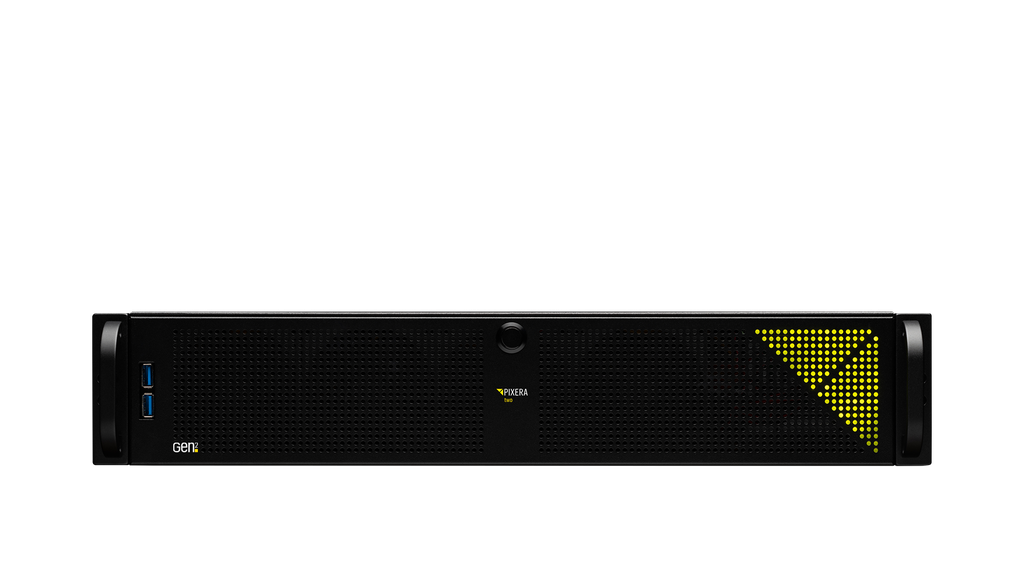

PIXERA two OCTO Gen.2
* 19"- 2U media server gen.2
* Redundant Power supply
* Intel® Xeon® X50 (24/48-Core, 2.1/3.9GHz, 45MB)
* 128GB RAM (ECC REG, 8 channels)
* 1.92 TB Data Storage U.2 SSD (Data U.2 SSD Max. Read Rate: 5 GB/s)
* Physical Outputs: 8 x DisplayPort 1.4a
* 2x 10 Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* Operating System: Windows® 10 IoT - 21H2 x64
* PIXERA director -DIRECTOR licence V2
* PIXERA control - GATE licence V2
PIXERA two OCTO
* 19"- 2U media server
* Redundant Power supply
* Intel Xeon SP (2,4GHz/3,5GHz)
* 32GB ECC Ram - 4 channels used
* 2.0TB NVMe (max read 1.6GB/s)
* 8x DP 1.4 Output
* Framelock and Genlock
* 2x 10Gbps Network
* Stereo Output via 3,5mm TRS jack
* PIXERA server - OCTO licence
* PIXERA control - GATE licence
PIXERA two QUAD Gen.2
* 19"- 2U media server gen.2
* Redundant Power supply
* Intel® Xeon® (12/24-Core, 2.0/3.9GHz, 30MB),
* 128GB RAM (ECC REG, 8 channels)
* 1.92 TB Data Storage U.2 SSD (Data U.2 SSD Max. Read Rate: 5 GB/s)
* Physical Outputs: 4 x DisplayPort 1.4a
* 2x 10 Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* Operating System: Windows® 10 IoT - 21H2 x64
* PIXERA director -DIRECTOR licence V2
* PIXERA control - GATE licence V2
PIXERA two DUAL Gen.2
* 19"- 2U media server gen.2
* Redundant Power supply
* Intel® Xeon® (12/24-Core, 2.0/3.9GHz, 30MB),
* 128GB RAM (ECC REG, 8 channels)
* 1.92 TB Data Storage U.2 SSD (Data U.2 SSD Max. Read Rate: 5 GB/s)
* Physical Outputs: 4 x DisplayPort 1.4a
* 2x 10 Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* Operating System: Windows® 10 IoT - 21H2 x64
* PIXERA director -DIRECTOR licence V2
* PIXERA control - GATE licence V2
Data Storage Upgrade | 4x U.2 SSD 15,36TB(10GB/s)
* 4x U.2 SSD 15,36TB(10GB/s)
* Data U.2 SSD Capacity (NET): 61,44TB | Max. Read Rate: 20 GB/sec
* Only for PIXERA four
PIXERA two DIRECTOR Gen.2
* 19"- 2U media server gen.2
* Redundant Power supply
* Intel® Xeon® (12/24-Core, 2.0/3.9GHz, 30MB),
* 128GB RAM (ECC REG, 8 channels)
* 1.92 TB Data Storage U.2 SSD (Data U.2 SSD Max. Read Rate: 5 GB/s)
* Physical Outputs: 4 x DisplayPort 1.4a
* 2x 10 Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* Operating System: Windows® 10 IoT - 21H2 x64
* PIXERA director -DIRECTOR licence V2
* PIXERA control - GATE licence V2
PIXERA two QUAD Gen.1
* 19"- 2U media server
* Redundant Power supply
* Intel Xeon SP (2,1GHz/3,2GHz)
* 24GB ECC Ram - 3 channels used
* 2.0TB NVMe (max read 1.6GB/s)
* 4x DP 1.4 Output
* 2x 10Gbps Network
* Stereo Output via 3,5mm TRS jack
* PIXERA server - QUAD licence
* PIXERA control - GATE licence

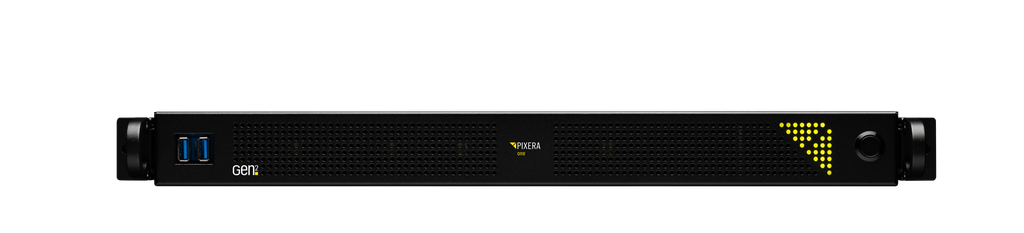

PIXERA one QUAD Gen.2
* 19"- 1U media server gen.2
* Intel® Xeon® SP (8/8-Core, 1.80/1.9 GHz, 22.5MB)
* 64GB RAM (ECC REG, 4 channels)
* 1.92 TB Data Storage U.2 SSD (Data U.2 SSD Max. Read Rate: 5 GB/s)
* Physical Outputs: 4 x DisplayPort 1.4a
* 2x 10 Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* Operating System: Windows® 10 IoT - 21H2 x64
* PIXERA server - QUAD licence V2
* PIXERA control - GATE licence V2
4x NVMe SSD 7,68TB (20GB/s)
* Data NVMe SSD Capacity (NET): 30,72TB | Data NVMe Max. Read Rate: 20 GB/sec
* Playback Duration Uncompressed Content (Single Stream): 368 min (4k60 TIFF)
2x NVMe SSD 15,36TB (10GB/s)
* Data NVMe SSD Capacity (NET): 30,72TB | Data NVMe Max. Read Rate: 10 GB/sec
* Playback Duration Uncompressed Content (Single Stream): 368 min (4k60 TIFF)
PIXERA two DUAL Gen.1
* 19"- 2U media server
* Redundant Power supply
* Intel Xeon SP (2,1GHz/3,2GHz)
* 24GB ECC Ram - 3 channels used
* 2.0TB NVMe (max read 1.6GB/s)
* 4x DP 1.4 Output
* 2x 10Gbps Network
* Stereo Output via 3,5mm TRS jack
* PIXERA server - DUAL licence
* PIXERA control - GATE licence
PIXERA one control ENTERPRISE Gen.2
* 19"- 1U media server gen.2
* Intel® Xeon® SP (8/8-Core, 1.80/1.9 GHz, 22.5MB)
* 64GB RAM (ECC REG, 4 channels)
* 1.92 TB Data Storage U.2 SSD (Data U.2 SSD Max. Read Rate: 5 GB/s)
* Physical Outputs: 4 x MiniDisplayPort 1.4
* 2x 10 Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* Operating System: Windows® 10 IoT - 21H2 x64
* Stereo Output (2x quarter-inch TRS jack)
* PIXERA control - ENTERPRISE licence V2
PIXERA one DUAL Gen.2
* 19"- 1U media server gen.2
* Intel® Xeon® SP (8/8-Core, 1.80/1.9 GHz, 22.5MB)
* 64GB RAM (ECC REG, 4 channels)
* 1.92 TB Data Storage U.2 SSD (Data U.2 SSD Max. Read Rate: 5 GB/s)
* Physical Outputs: 4 x DisplayPort 1.4a
* 2x 10 Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* Operating System: Windows® 10 IoT - 21H2 x64
* PIXERA server - DUAL licence V2
* PIXERA control - GATE licence V2
PIXERA two DIRECTOR Gen.1
* 19"- 2U media server
* Redundant Power supply
* Intel Xeon SP (2,1GHz/3,2GHz)
* 24GB ECC Ram - 3 channels used
* 2.0TB NVMe (max read 1.6GB/s)
* 4x DP 1.4 Output
* 2x 10Gbps Network
* Stereo Output via 3,5mm TRS jack
* PIXERA director -DIRECTOR licence
* PIXERA control - GATE licence
