Pixera

* 12x 3G-SDI I/O Mini BNC
* 4 Channel 12G-SDI or 8 Channel 3G-SDI Input/Output

1 Channel HDMI 2.0 Input / 4 Channel 3G-SDI or 2 Channel 12G-SDI Input/Output

* 2x HDMI 2.0 live input

* AES/EBU: 8x (XLR)
* MIDI: In/Out

* ONLY main card Possible! AES/EBU 5-8, MIDI are therefore not available!

* incl. MIDI Breakout Cable

* Analog Unbalanced: 2x (RCA), 1x Stereo-Phones (6,3mm TRS)
* Analog Balanced: 2x (XLR) (not simultaneously with RCA!)
* SPDIF: 1x (RCA)
* AES/EBU: 1x (XLR)
* ADAT: 1x (TOSLINK)
* MIDI: In/Out

* incl. Analog Breakout Cable (Balanced and Unbalanced) -
PXZ-AUDIO/ANA-BO-AIO, Digital Breakout Cable

* Data NVMe Capacity (Net): 12.0TB | Data NVMe Max. Read Rate: 6,2GB/s
* Playback Duration Uncompressed Content (Single Stream): 125min (4k60 TIFF)

* Data NVMe Capacity (Net): 8.0TB | Data NVMe Max. Read Rate: 4,8GB/s
* Playback Duration Uncompressed Content (Single Stream): 83,3min (4k60 TIFF)

* Data NVMe Capacity (Net): 6.0TB | Data NVMe Max. Read Rate: 6,2GB/s
* Playback Duration Uncompressed Content (Single Stream): 62,5min (4k60 TIFF)

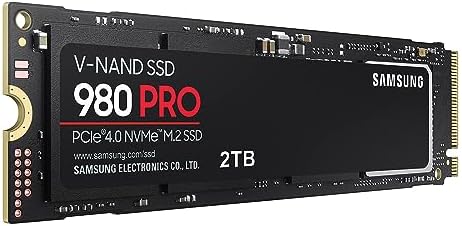

* Data NVMe Capacity (Net): 2.0TB | Data NVMe Max. Read Rate: 6,0GB/s
* Playback Duration Uncompressed Content (Single Stream): 20,8min (4k60 TIFF)

* Data NVMe Capacity (Net): 2.0TB | Data NVMe Max. Read Rate: 1,6GB/s
* Playback Duration Uncompressed Content (Single Stream): 20,8min (4k60 TIFF)

* Upgrade to Intel® 16-CORE™ Xeon processor
CPU Pixera Operating Frequency: 3,9GHz
* Upgrade to 48 GB ECC RAM

* Upgrade to Intel® 12-CORE™ Xeon processor
CPU Pixera Operating Frequency: 3,5GHz
* Upgrade to 32 GB ECC RAM

* installation of Dante virtual soundcard

* additional Data NVMe Capacity (Net): 2.0TB | Data NVMe Max. Read Rate: 1,6GB/s
* Playback Duration Uncompressed Content (Single Stream): 20,8min (4k60 TIFF)

* additional Data NVMe Capacity (Net): 1.0TB | Data NVMe Max. Read Rate: 1,6GB/s
* Playback Duration Uncompressed Content (Single Stream): 10,4min (4k60 TIFF)

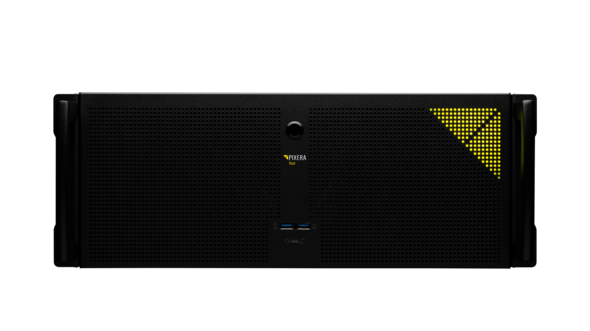

* 19""- 4U media server
* Redundant Power supply Hot-Plug
* AMD EPYC™ (24/48-Core, 2,85/4,0GHz, 128MB)
* 128GB RAM (ECC, 8 channels)
* 15,36TB Data Storage U.2 SSD (Data U.2 SSD RAID0 Max. Read Rate: 10 GB/s)
* Physical Outputs: 4x DisplayPort 1.4a
* 2x10Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* GUI Output
* Framelock and Genlock
* 4x 1Gbps Network
* 2x 25Gbps Network
* 1x HDMI2.0 Input
* 2x 12G-SDI I/O or 4x 3G-SDI I/O
* Dante Virtual Soundcard
* Operating System: Windows® 11 IoT*- 24H2 x64
* PIXERA server - QUAD Hardware license - UAP included
* PIXERA control -CORE license
* 19"" Rail Kit incl. fastening material

* 19""- 4U media server
* Redundant Power supply Hot-Plug
* AMD EPYC™ (24/48-Core, 2,85/4,0GHz, 128MB)
* 128GB RAM (ECC, 8 channels)
* 3,84TB Data Storage U.2 SSD (Data U.2 SSD RAID0 Max. Read Rate: 10 GB/s)
* Physical Outputs: 4 x DisplayPort 1.4a
* 2x 10Gb LAN onboard | 1x IPMI LAN
* PIXERA Audio-Interface (Balanced out, 2x 6.3mm phone jack)
* Operating System: Windows® 11 IoT* - 24H2 x64
* PIXERA server - QUAD Hardware licence - UAP included
* PIXERA control - GATE licence
* 19"" Rail Kit for Pixera 4 incl. fastening material

8 Playback Outputs - Unlimited Timelines - All features available

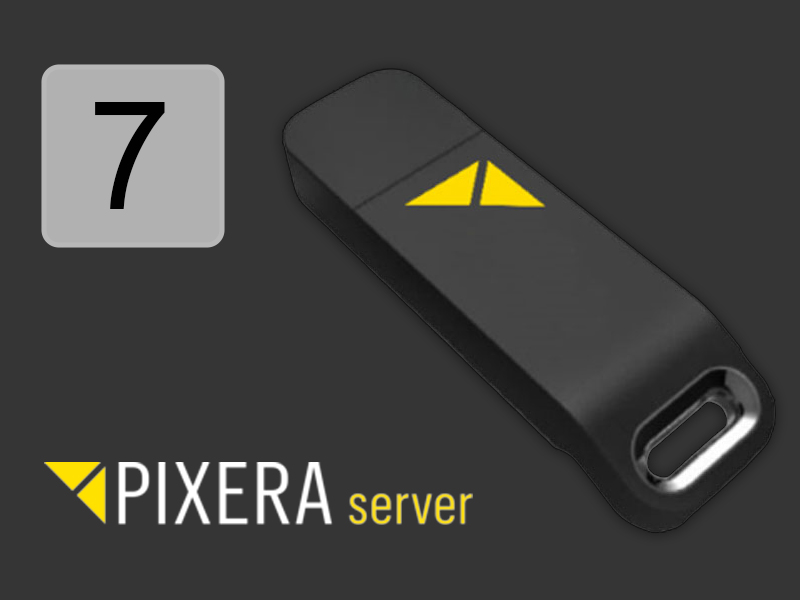

7 Playback Outputs - Unlimited Timelines - All features available

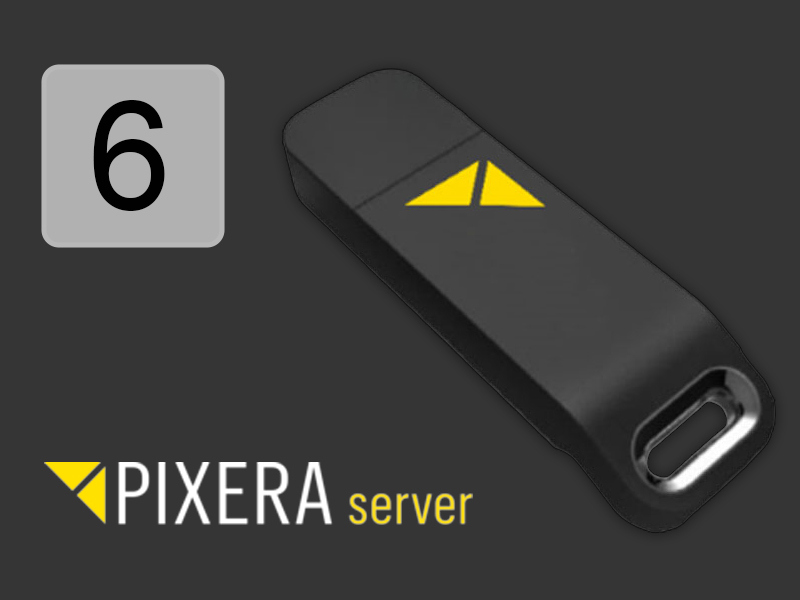

6 Playback Outputs - Unlimited Timelines - All features available
